Draw Functions Pay
The Pay Draw Games Function on the GT-1200 terminal is used to validate and payout on winning Draw Game tickets.
Draw Game Validation and Payout Process
- Access the Draw Game Pay button as described above. The Validate window will appear.
- With the Validate window open, Retailers can either enter the Draw Game ticket into the GT-1200 reader on top of the machine or manually enter the Draw game serial number.
Scanning Draw Game Tickets
Retailers can utilize the GT-1200 Ticket Reader located on top of the terminal machine to quickly scan and validate tickets.
Manual Serial Number Entry
Retailers can also manually enter the serial number of a Draw Game, located at the top of each ticket.
3. After scanning or manually entering a Draw Ticket, press SEND.
Winning Ticket – Draw Game Validation and Payout
- If a winning ticket was entered, a SCRATCH VALIDATION receipt will print from the GT-1200.
- For validations totaling from $101 up to $600, a confirmation screen displays.
- Retailers must ensure enough cash is available to payout tickets before they are validated.
- Retailers must ensure enough cash is available to payout tickets before they are validated.
- Touch Yes to validate.
- Before paying a prize, Retailers must validate all tickets.
- Retailers MUST PAYOUT AT TIME OF VALIDATION.
- Touch No to cancel.
NOTES:
- Retailers must ensure that they have enough cash on-hand to pay out any validated ticket under $100.
- For prizes over $600, Claim Instructions print automatically.
If the ticket will not validate for ANY reason, it must be returned to the player and have player contact the Lottery for instructions.
- Hits: 65
Self Service ITVM: ITVM Comm Report

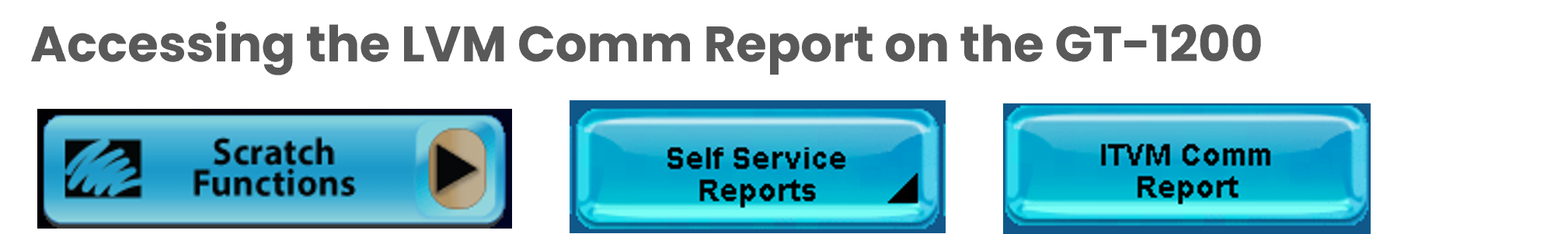

The Comm Report shows the status of the communications connection of the Lottery vending machine (LVM) or Self-Service Terminal (SST). When generating this report the LVM/SST will send various Data Packets via the network. Depending on if these packets are delivered or not will result in a pass or fail, and an overall percentage is provided.
Abbreviations Glossary
ITVM : Instant Ticket Vending Machine
LVM : Lottery Vending Machine
SST : Self Service Terminal
- Hits: 61
Self Service ITVM: Suspend and Resume ITVM
Suspend ITVM

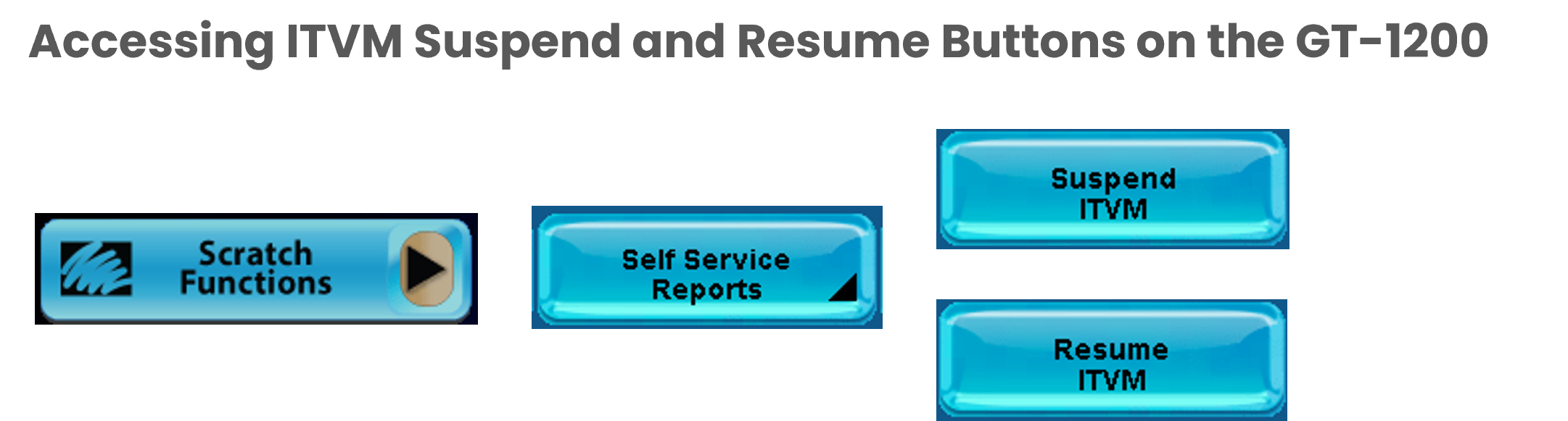

Using the Suspend ITVM button on the GT1200, Retailers with a connected Self Service Terminal can immediately stop transactions from taking place at the ITVM.
Resume ITVM
When transactions are suspended on the ITVM, Retailers can reactivate the machine by pressing the Resume ITVM button.
- Hits: 57
Self Service ITVM: Security Report

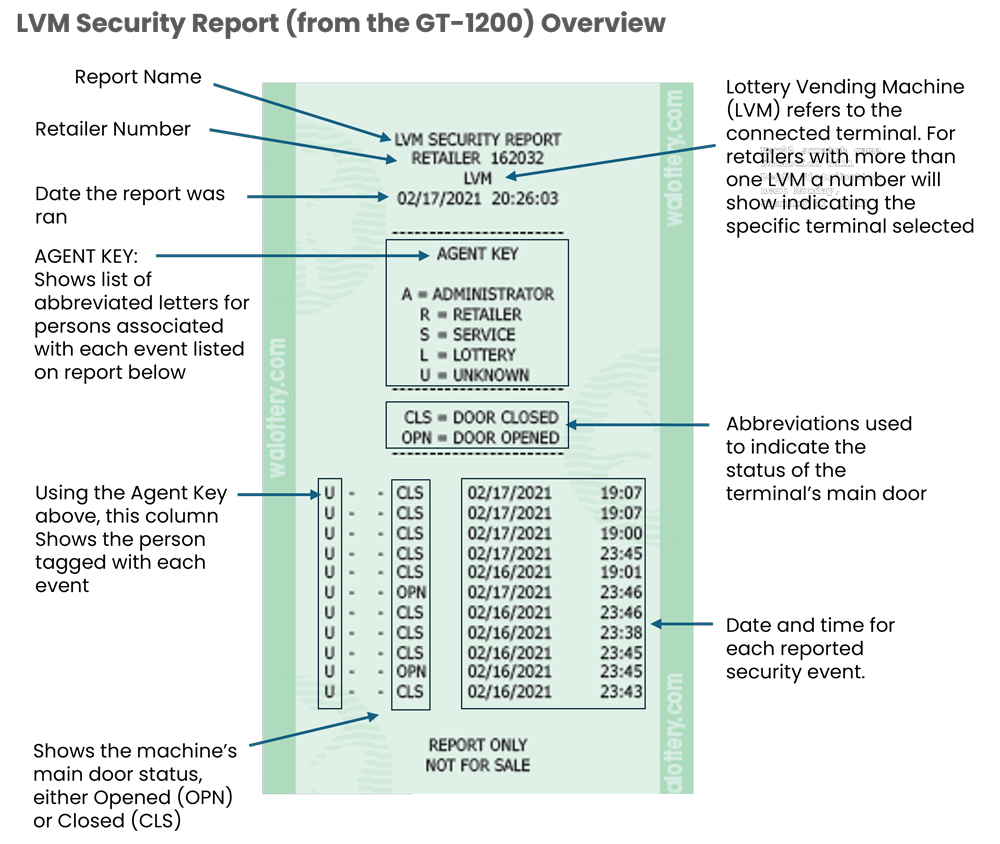

Printing the LVM Security report from the GT-1200 shows the previous ten (10) occurrences of when the Lottery Vending Machine (LVM) or Self-Service Terminal (SST) main door reported open or closed.
Please Note: When running the LVM Security report from the GT-1200, both terminals must be linked and communicating on the same network. If both terminals are not communicating, the following message may appear:
Best Practice: For a more comprehensive list of security events and details, Retailers should run the Security Reports directly from the connected LVM or SST.
- Link to Running LVM Security Report from the SSTs
