GT20 Cashbox

Note: Error message “SORRY THIS TERM IS NOT ABLE TO HANDLE ANY TRANSACTIONS” may appear when the cash box is full or is jammed.



  1. Power off the terminal by toggling the highlighted on/off switch above the keypad to the down position (leave terminal off until below steps are completed).
  2. Open the bill acceptor door with the security key and tilt the assembly down.
    G20 JCM Bill Acceptor Door Open H1000G20 JCM Cash Box Pull Out H1000
  3. Pull out the Cash Box by grasping the yellow handle and pulling straight out.
    G20 JCM Cash Box Removal H1000G20 JCM Cash Box Lift H1000
  4. To open the Cash Box, squeeze the yellow latch and slide the bottom cover open to the access the content.
    G20 JCM Cash Box OpenH1000

    Note: the cash box opening is on the bottom of the cash box and may contain a separate lock.

  5. Remove the cash from the cash box.

  6. Replace the cash box.

Hits: 143

GT Printer - Change Paper

  1. Using the Pull Handle, slide the Printer tray forward.
    G20 Printer Pull Out H1000 G20 Printer Pull Handle H1000
  2. Press Gray buttonon the top of printer and lift to open lid.
    G20 Printer Push Button H1000 G20 Printer Lid Lift H1000
  3. Place Thermal Paper into Printer and pull paper up and Over the Roller.
    G20 Printer Insert Paper H1000 G20 Printer Insert Paper Above Roller H1000
  4. Close Printer. The Printer will automatically begin to feed paper through once the lid is closed.
    G20 Printer Close Lid H1000
Hits: 255
GT20
GT20 System Overview
GT20 Barcode Reader
Barcode Reader
GT20 Bill Acceptor
JCM Bill Acceptor



GT20 printer
Printer
GT20 cashbox
Cashbox
keyfob remote
Keyfob Remote
Hits: 107

GT20 JCM Bill Acceptor

  1. Power off the terminalby toggling the highlighted on/off switchabove the keypad to the down position (leave terminal off until below steps are completed).
  2. Open the bill acceptor doorwith the security keyand tilt the assembly down.
    G20 JCM Bill Acceptor Door Open H1000
  3. Remove the acceptor moduleby pushing up the silver latching and pulling straight out.

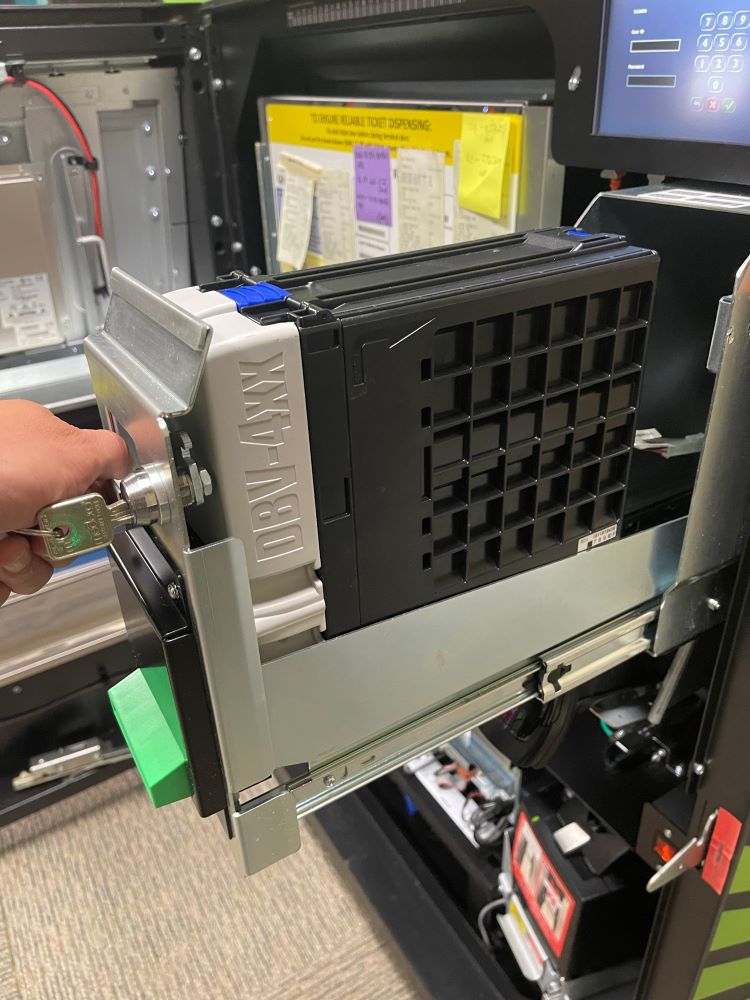

    G20 JCM Cash Box Pull Out H1000
  4. Place your fingers on the black groove and chrome barand squeeze to releasethe bill acceptor read head.
    G20 JCM Cash Box Removal H1000 G20 JCM Cash Box Lift H1000
  5. Gently lift the read head from the bill acceptor- this allows the clearing of jammed bills.
    G20 JCM Bill Removal H1000
  6. After the bill acceptor has been cleared, gently slide it down into its locked position. If the bill acceptor is put into its proper position it will reset after 10 seconds.
  7. Power on terminal by toggling the on/off switch above the keypad to the up position.
